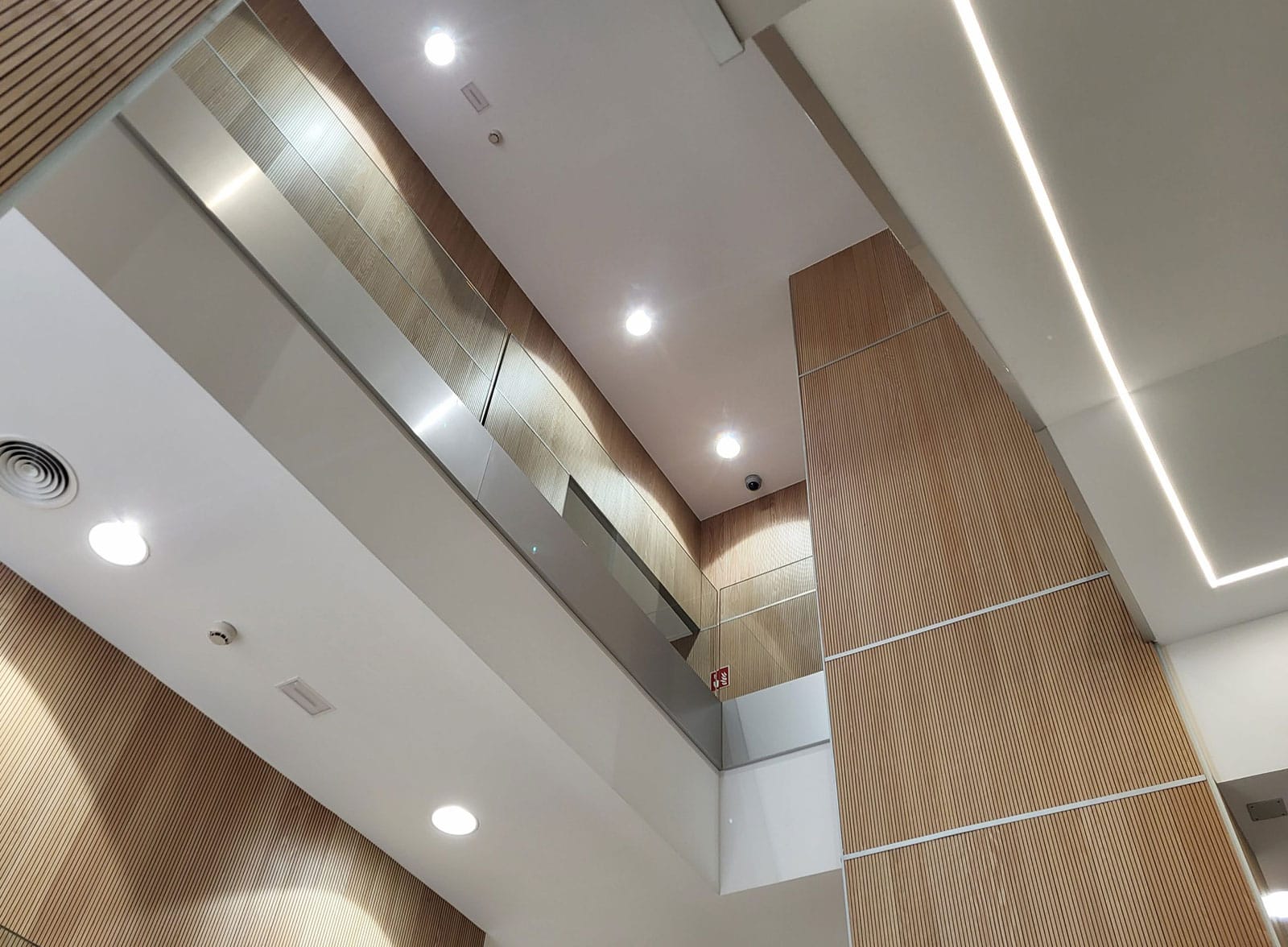

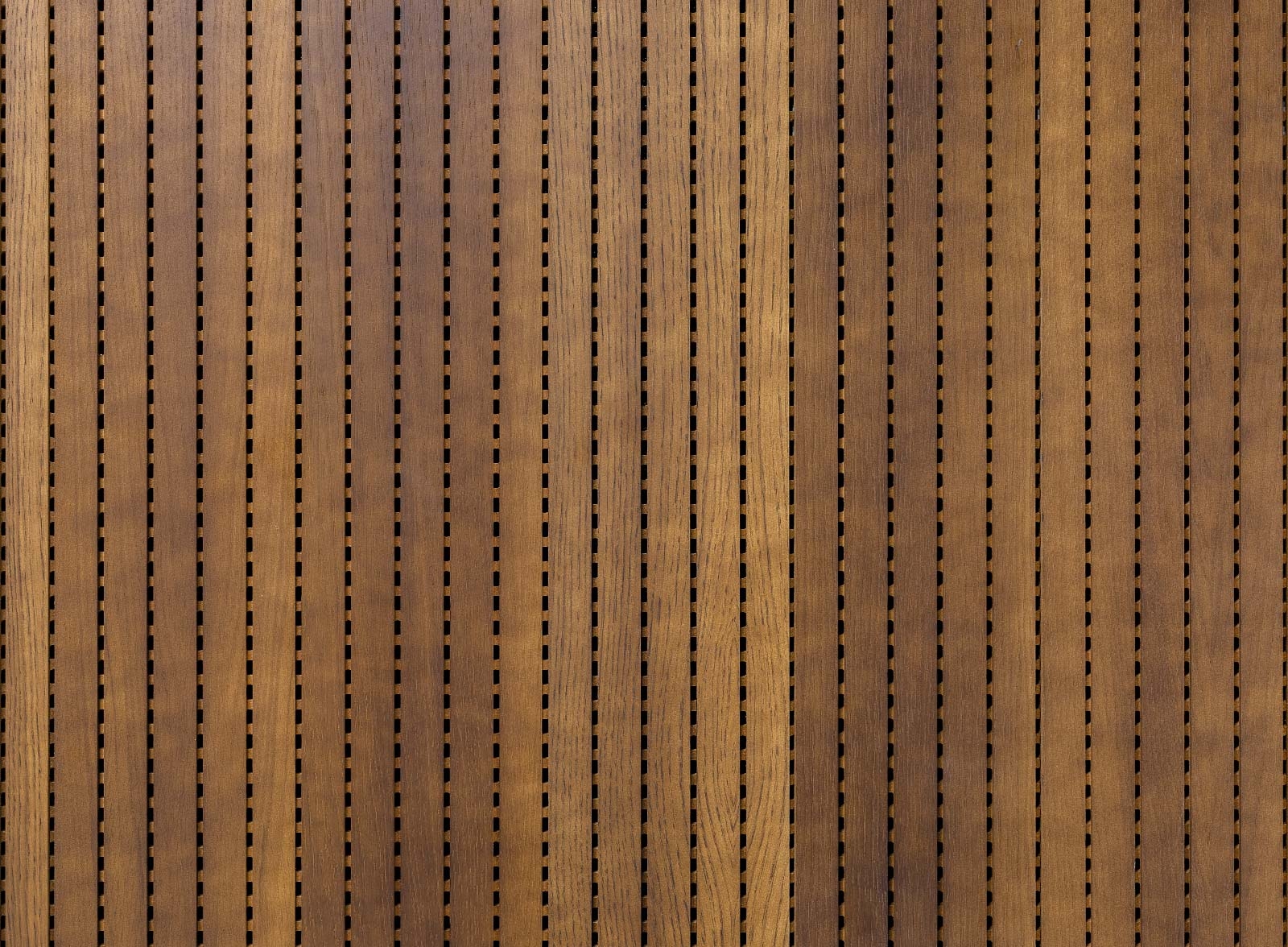

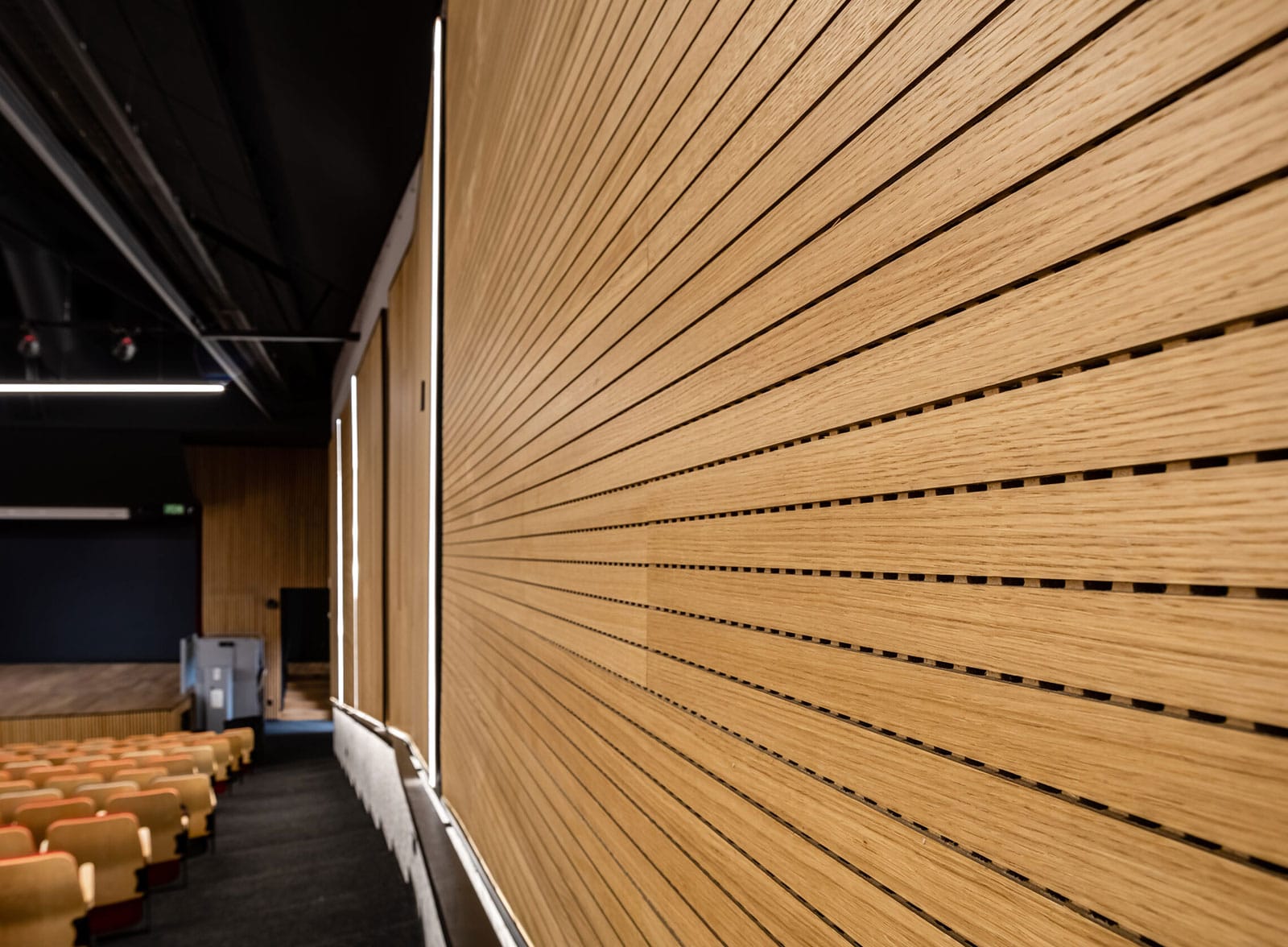

Standard 32
Ideacustic
Acoustic panel made of MDF, a technical product of the highest level designed for spaces that require careful acoustics, large rooms such as theatres or auditoriums, or smaller spaces such as restaurants, shops or lounges.
Application: walls y ceilings
Technical specifications
Format: panel
Measures: 2430x160x16 mm
Composition: MDF medium-density fibre board
Weight: 10,8 kg/m2
Density: 750 kg/m3
Acoustic tests: αm=0.70, αw=0.70, NRC=0.65
Application: Walls, Ceilings
– MDF Melamine 16 mm
– MDF veneered wood 16 mm
– Plywood 16 mm
– Phenolic HPL compact 16 mm
Special support materials: Enquire for more details.
Acoustic absorbent layer: Black acoustic fleece adhered to the back.
Dimensions:
Ceiling: 1200/600x600x16 mm y 2430x160x16 mm
Coating: 2430x160x16 mm
Tolerance:
Width +-1.5 mm / Length +- 1.5 mm. As per CE mark
Standard melamines:
Standard wooden panels:
Melamine or HPL laminates:Range available in over 100 colours.
Lacquers:Can be customised to any colour from the Pantone, RAL or NCS charts.
.jpg)
Related projects
View all projects
Sonoflex, Adidas

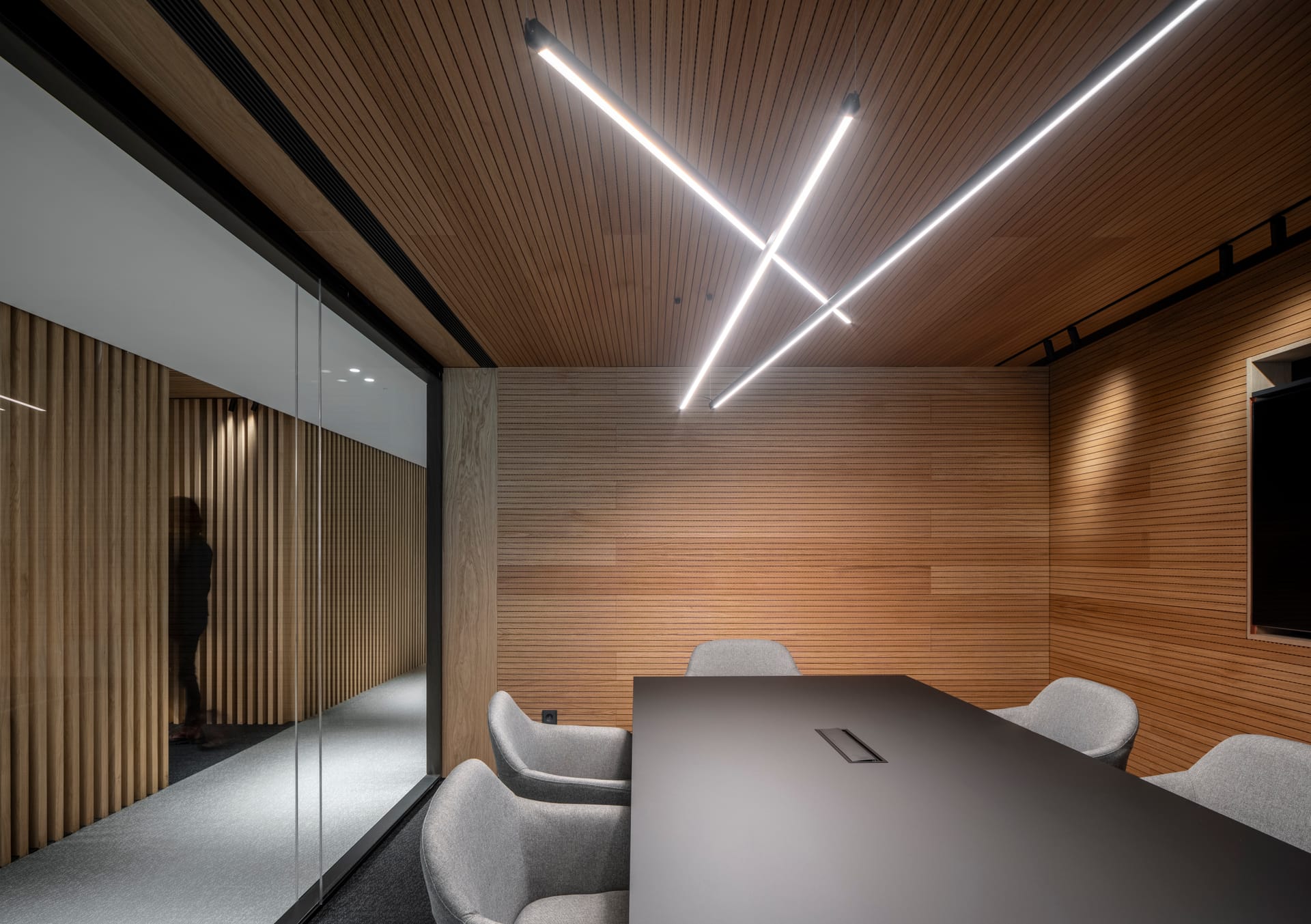

Caja Rural Headquarters
Varso Place Building
Central Point Building
Curro School, Durbanville
Club Nora Restaurant

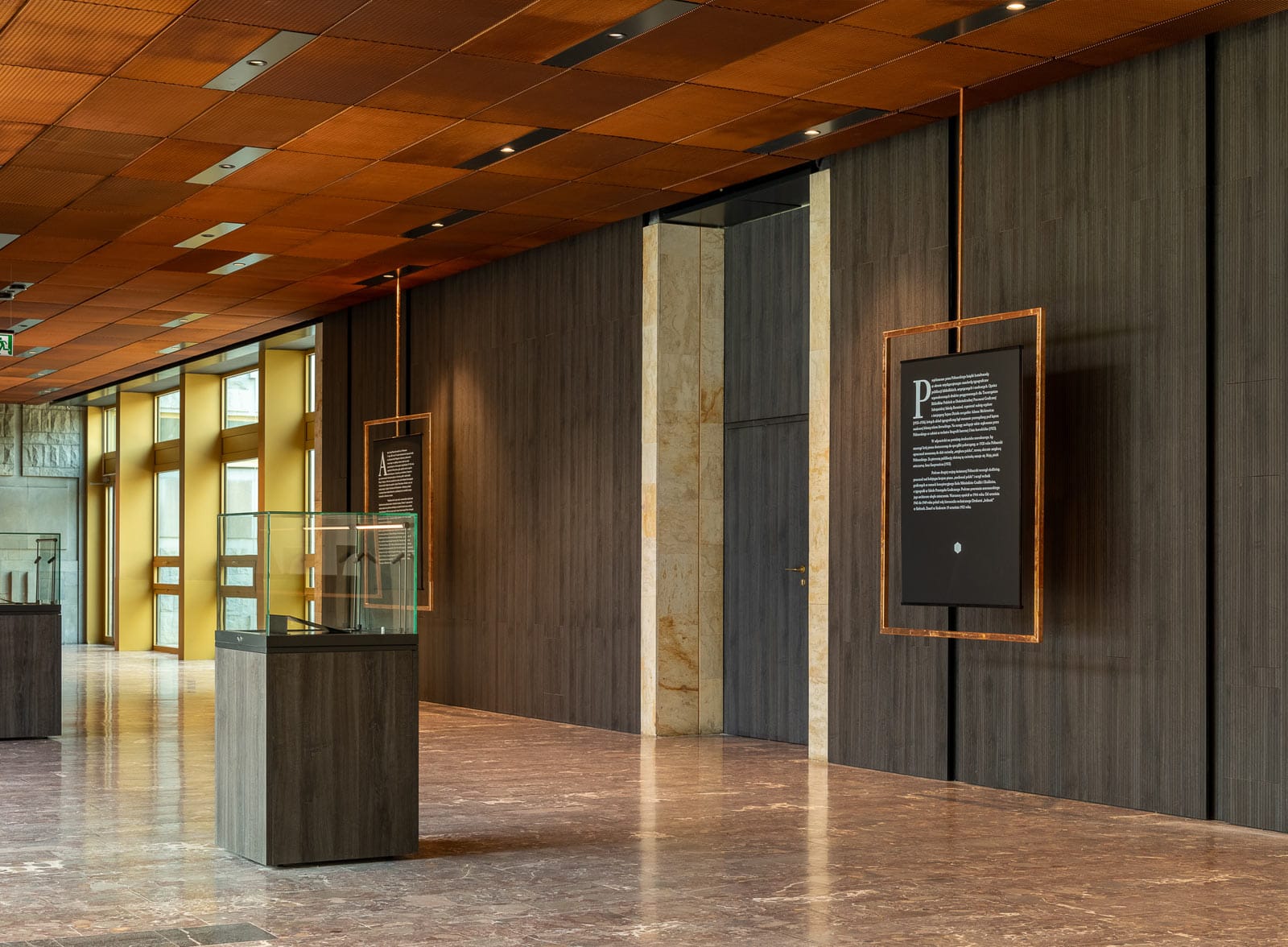

National Library
UCT Chris Hani Building
Angle Restaurant / Cram Hotel

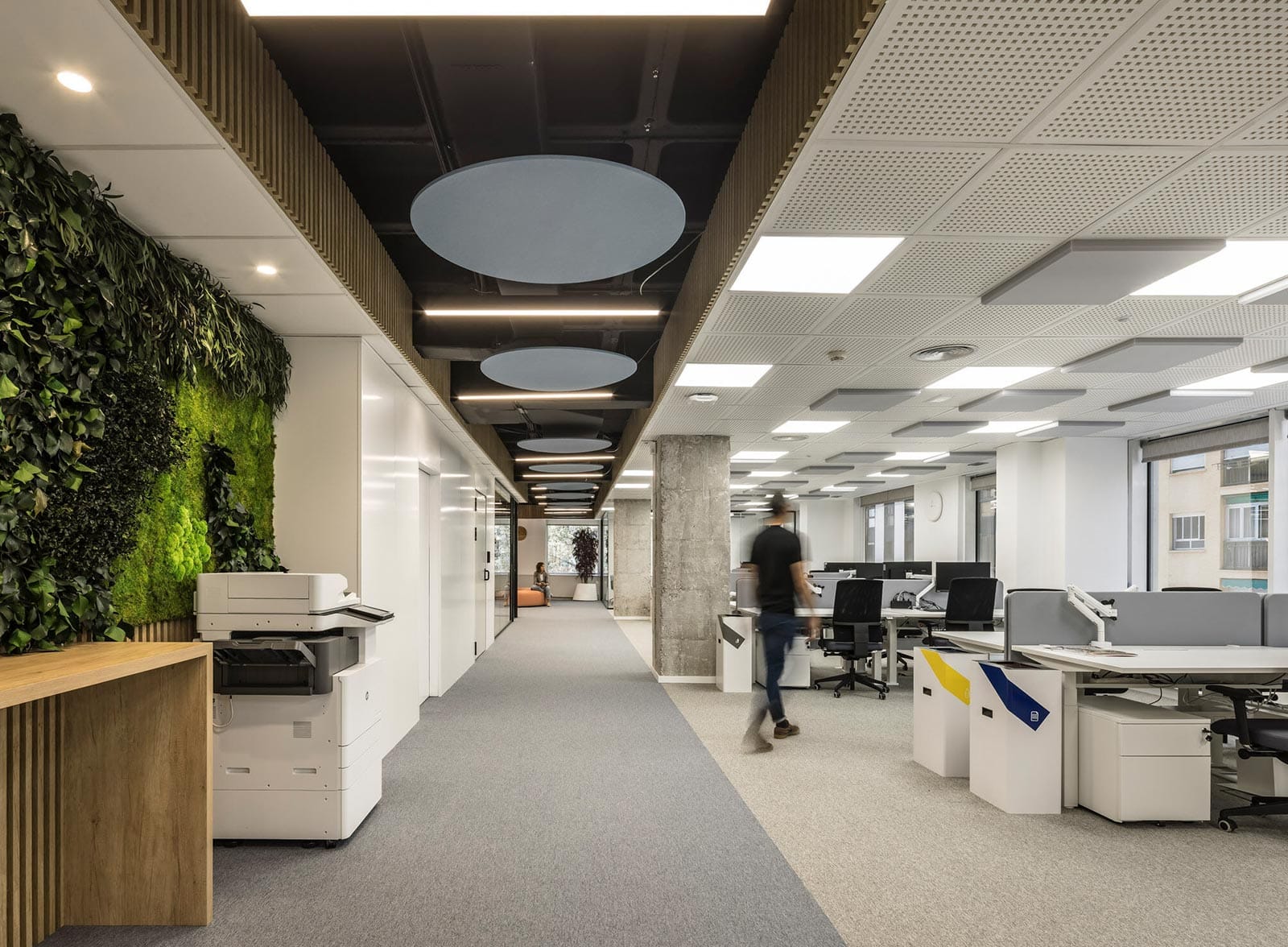

Spin Master offices

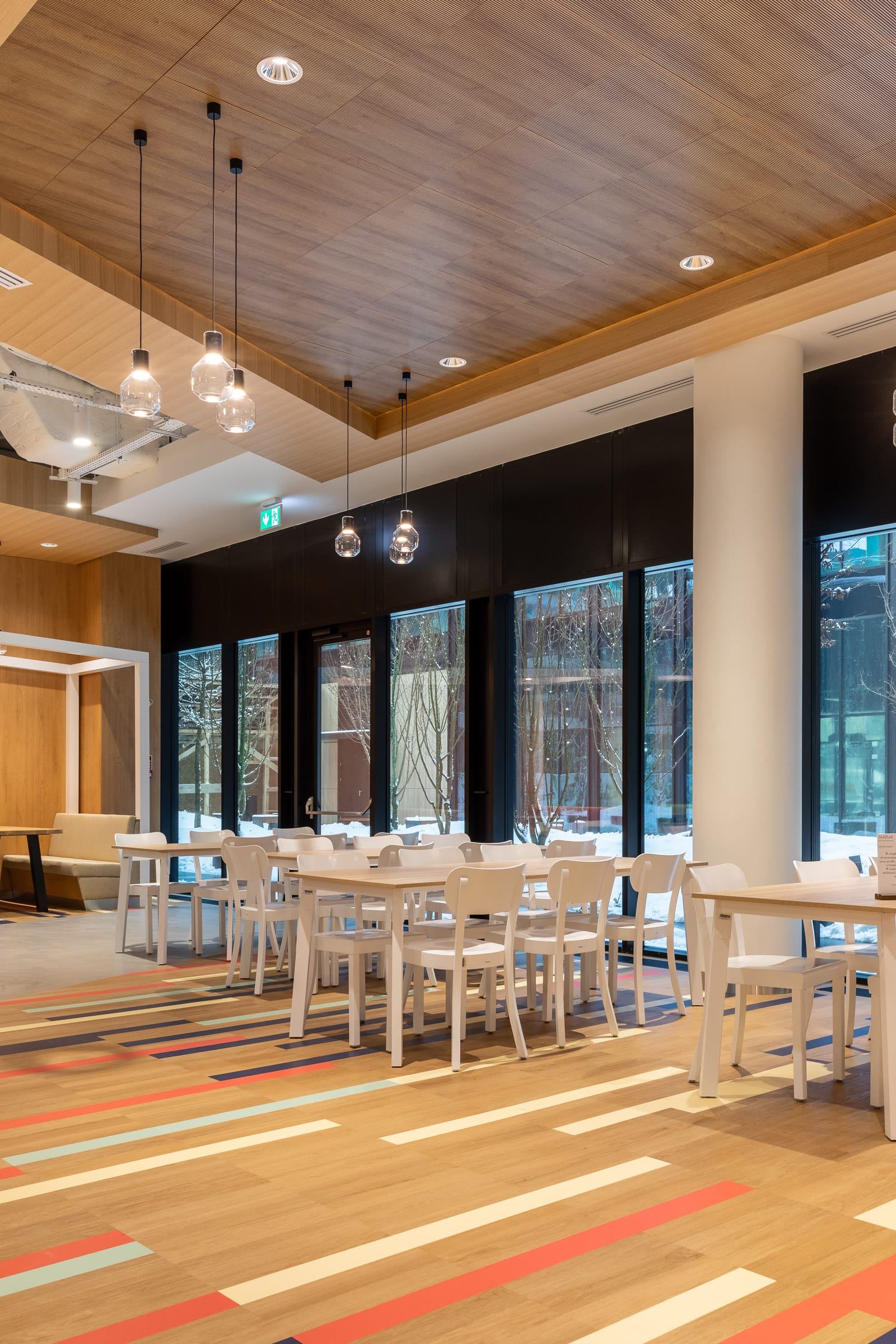

Lixa coffee shop

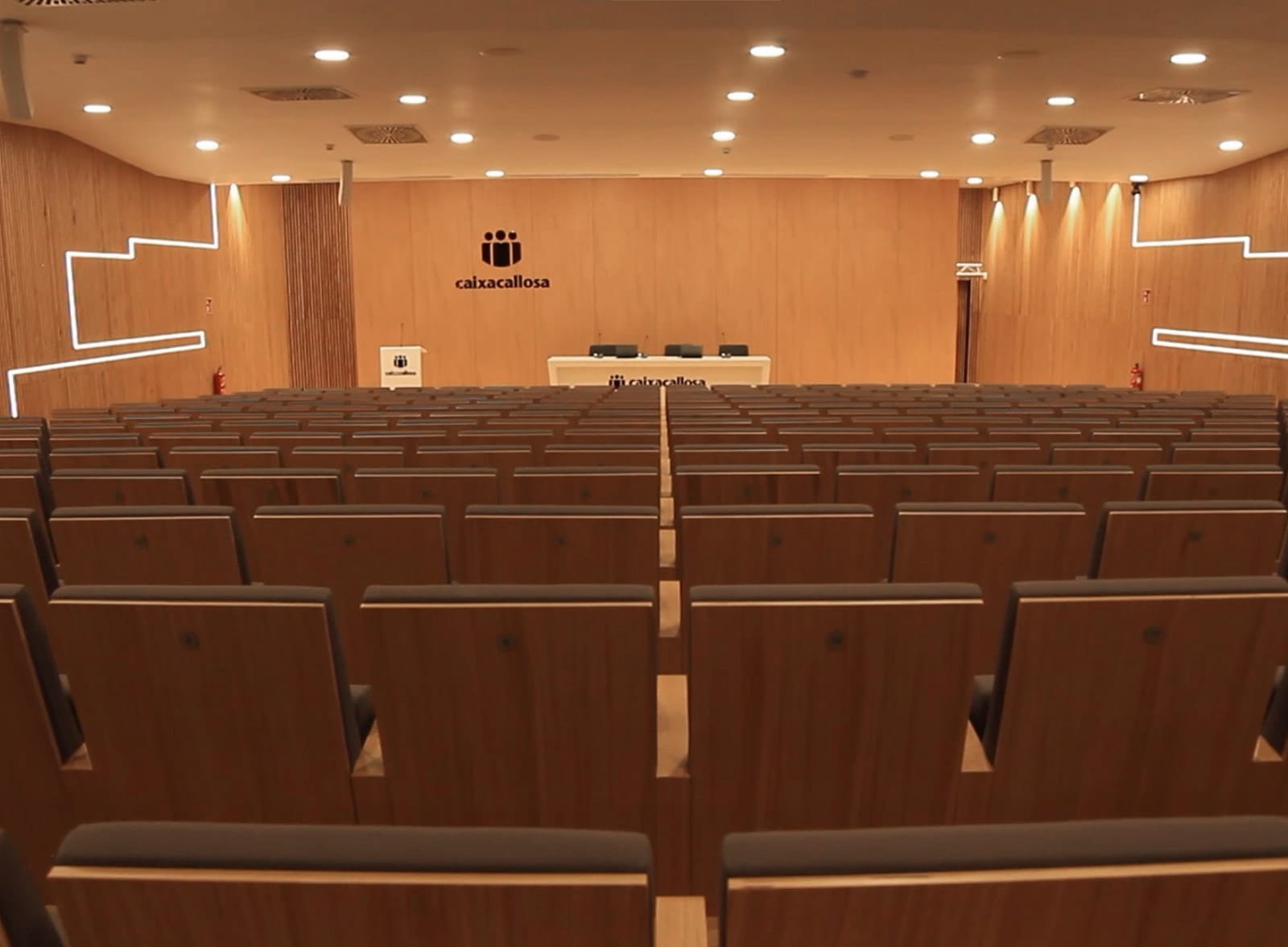

Social and cultural building

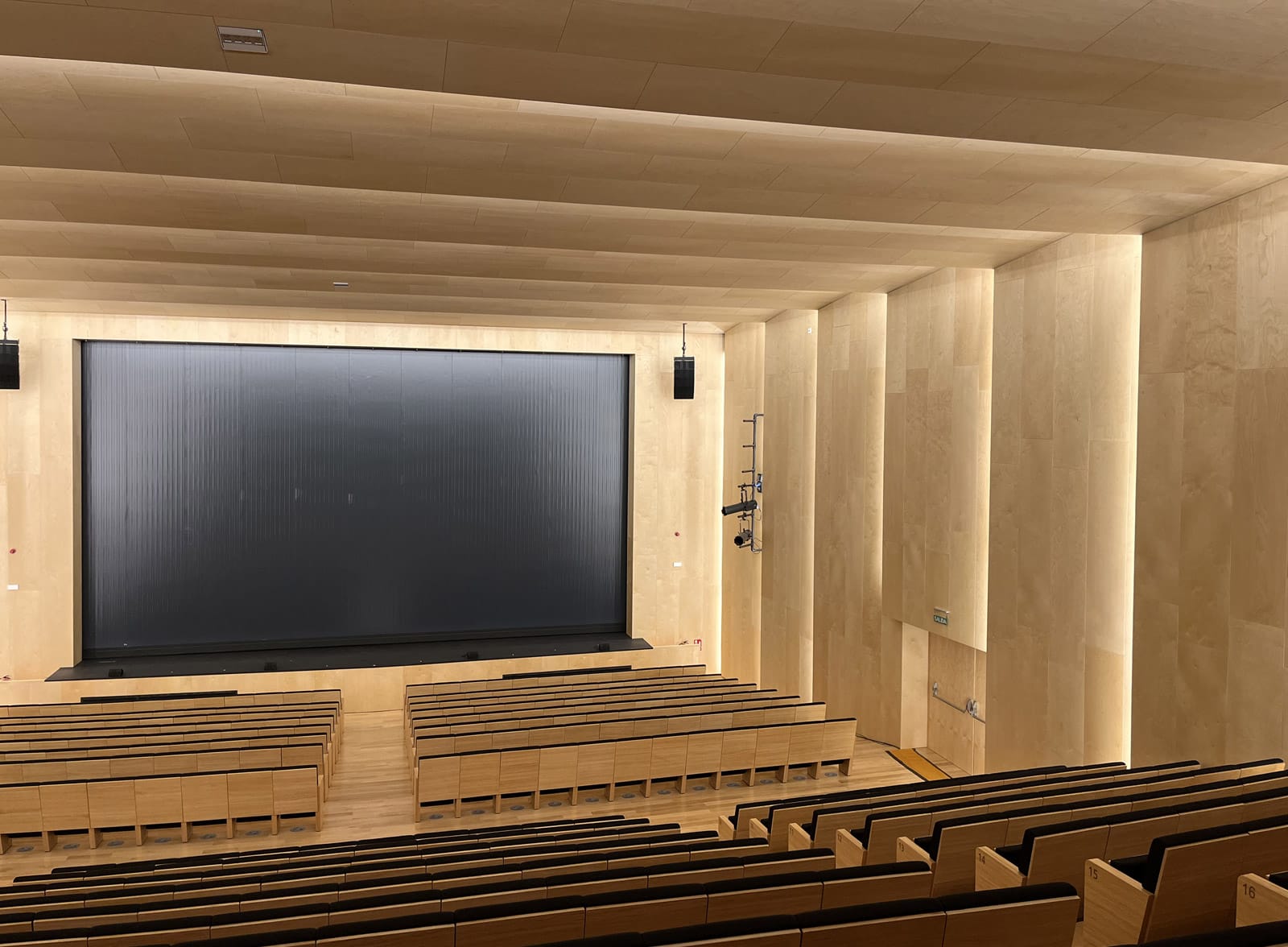

Adeje Auditorium and Theater
