Mix
Ideacustic

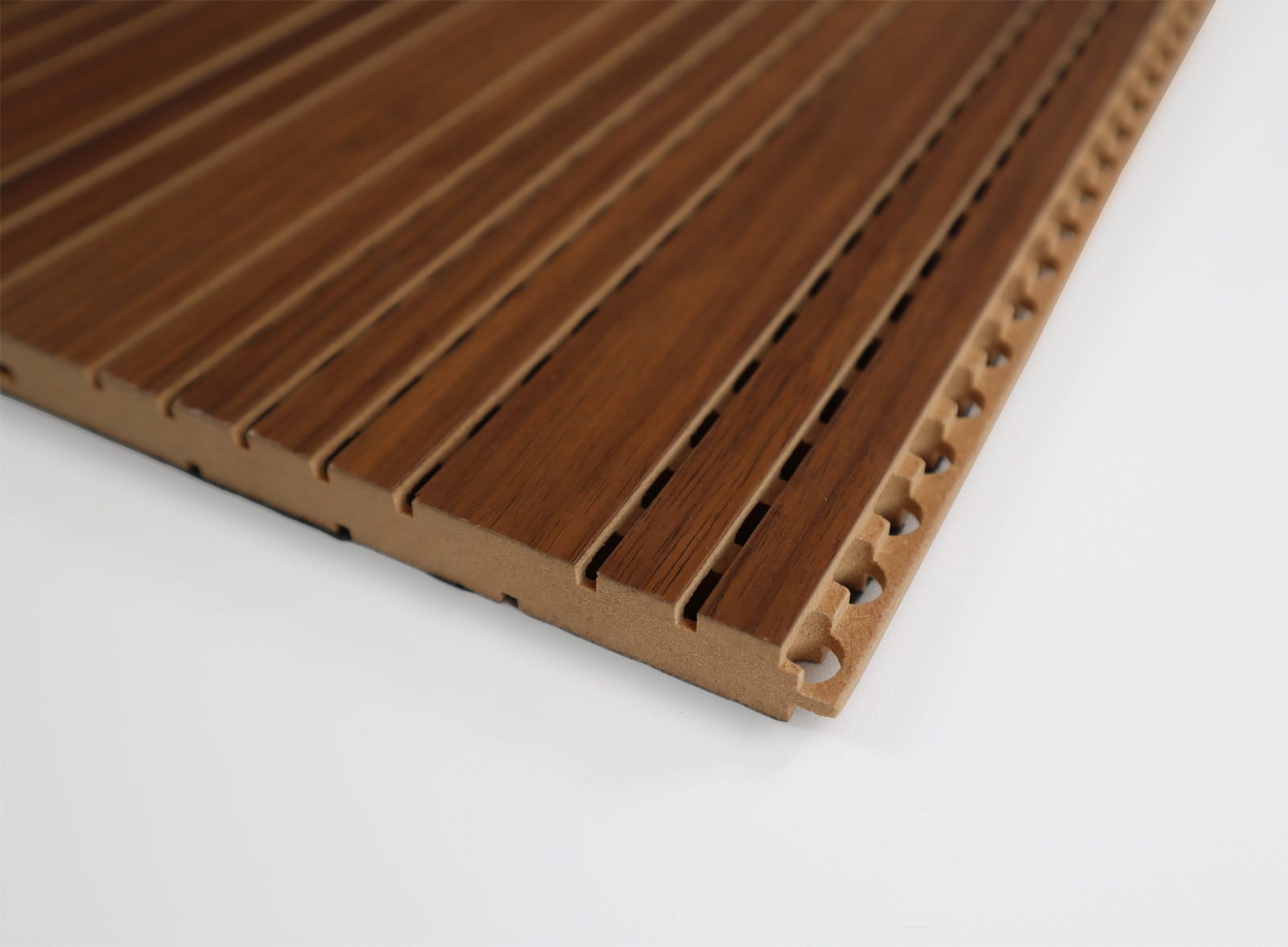

Acoustic panel made of MDF offers an innovative combination of 16 mm and 32 mm spacing grooves, optimising the sound-absorbing performance. Offering a high quality acoustic solution adaptable to any type of space.
Application: walls y ceilings
Technical specifications
Format: panel
Measures: 2430x160x16 mm
Composition: MDF medium density fiberboard
Weight: 9.26 kg/m2
Density: 750 kg/m3
Acoustic tests: αm=0.85, αw=0.85, NRC=0.80
Application: Walls, Ceilings
– MDF Melamine 16 mm
– MDF veneered wood 16 mm
– Plywood 16 mm
– Phenolic HPL compact 16 mm
Special support materials: consult.
Acoustic absorbent layer: velo acústico negro adherido al dorso.
Dimensions:
Ceiling: 2430x160x16mm
Coating: 2430x160x16mm
Tolerance:
Width +-1.5 mm / Length +- 1.5 mm. According to CE marking
Standard wooden panels:
Standard melamines:
Lacquers:Can be customised to any colour from the Pantone, RAL or NCS charts.
