Pro 11
Ideacustic

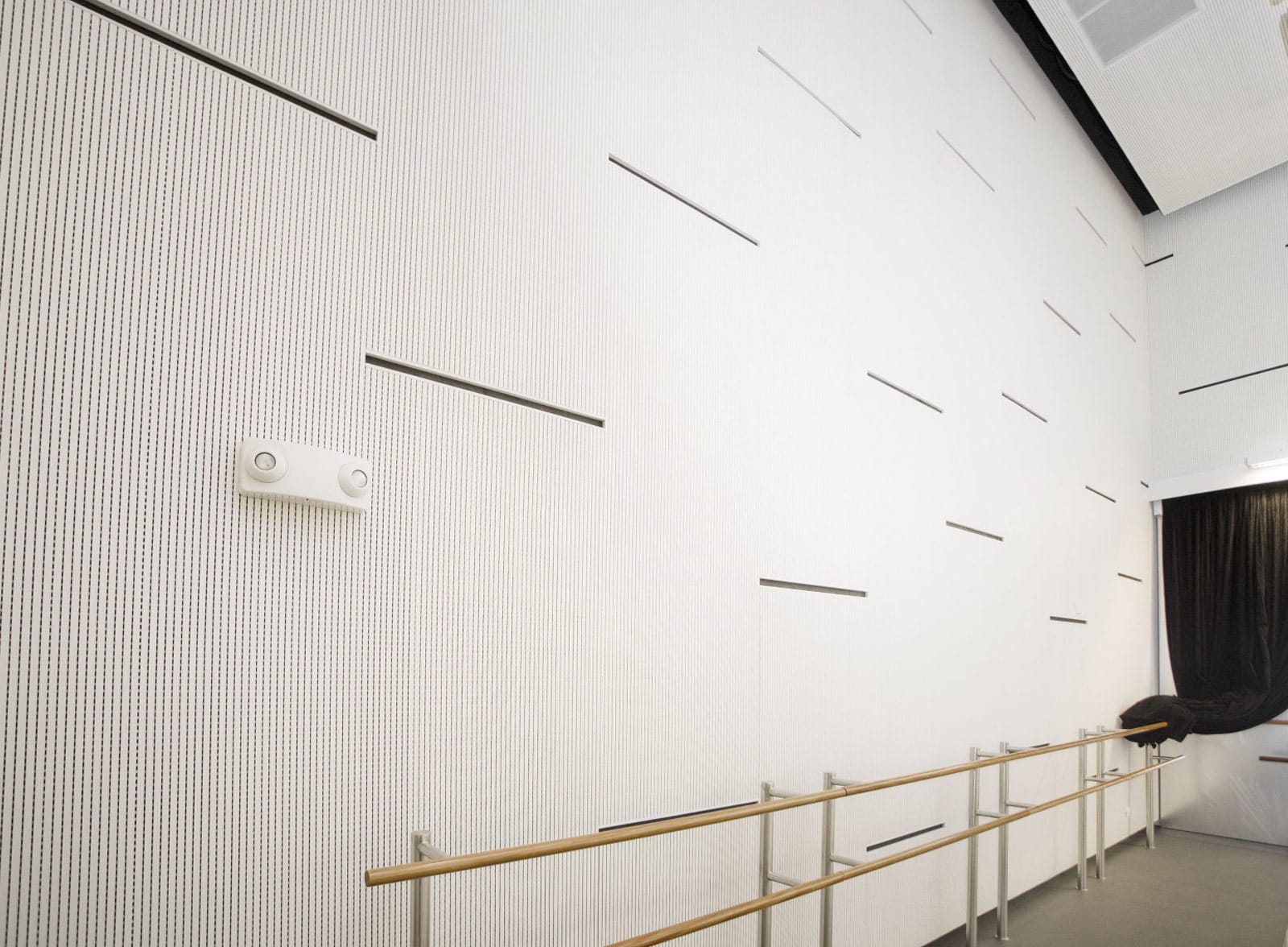

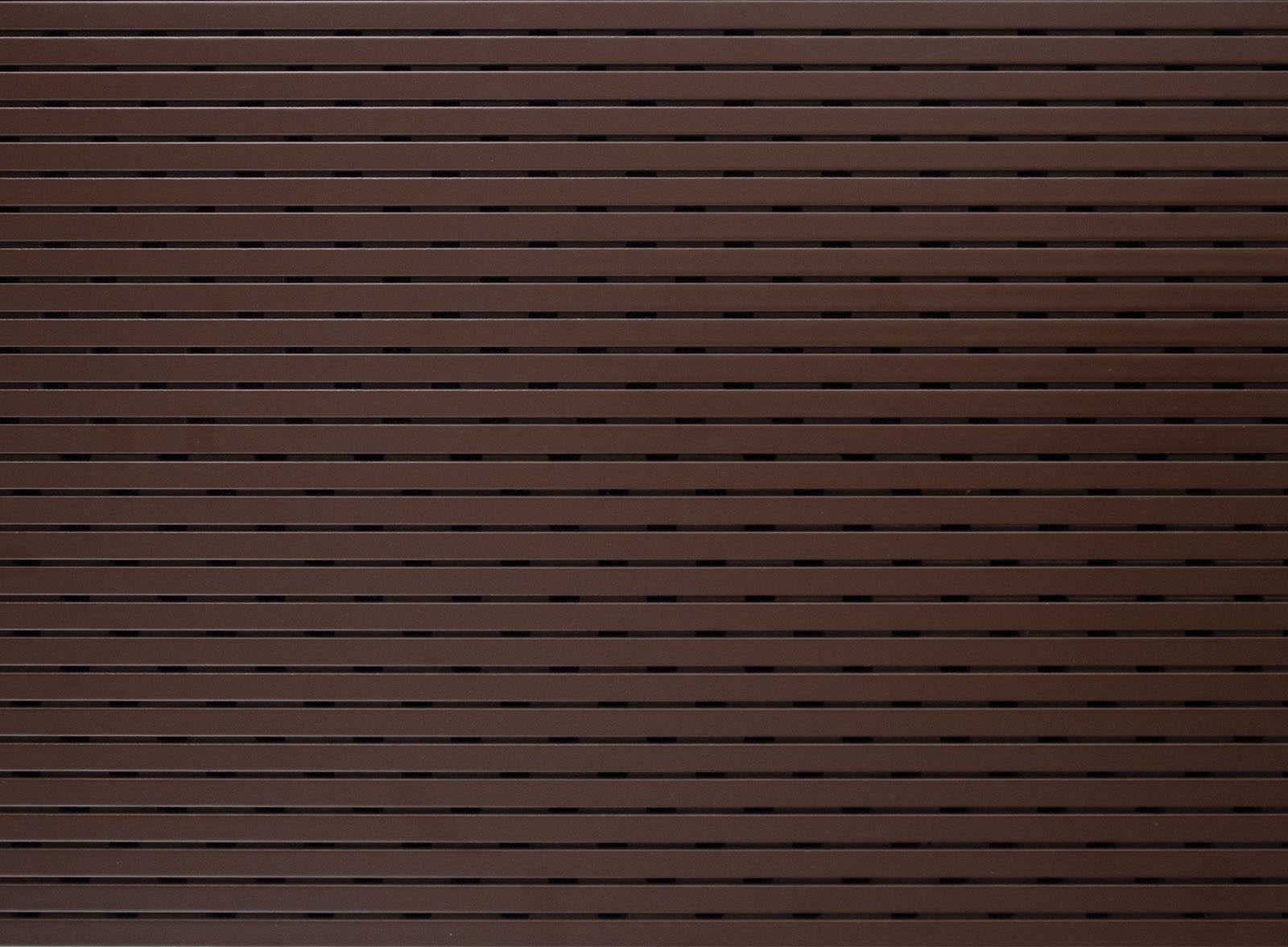

Acoustic panel made of MDF stands out for the 11 mm gap between slots, which offers great sound-absorbing performance with an aesthetic suitable for any type of space. Alone or combined with smooth panels, it is a product of the highest acoustic quality.
Application: walls y ceilings
Technical specifications
Format: panel
Measures: 2430x160x16 mm
Composition: Tablero de fibra de densidad media MDF
Weight: 8,36 kg/m2
Density: 750 kg/m3
Acoustic tests: αm=0.95, αw=0.85, NRC=0.90
Application: Walls, Ceilings
– MDF Melamine 16 mm
– MDF veneered wood 16 mm
– Plywood 16 mm
– Phenolic HPL compact 16 mm
Special support materials: Enquire for more details.
Acoustic absorbent layer: Black acoustic fleece adhered to the back.
Dimensions:
Ceiling: 1200/600x600x16 mm and 2430x160x16 mm
Coating: 2430x160x16 mm
Tolerance:
Width +- 1.5 mm / Length +- 1.5 mm. As per CE mark
Standard melamines:
Standard wooden panels:
Melamine or HPL laminates:Range available in over 100 colours.
Lacquers:Can be customised to any colour from the Pantone, RAL or NCS charts.
