R32
Ideaperfo

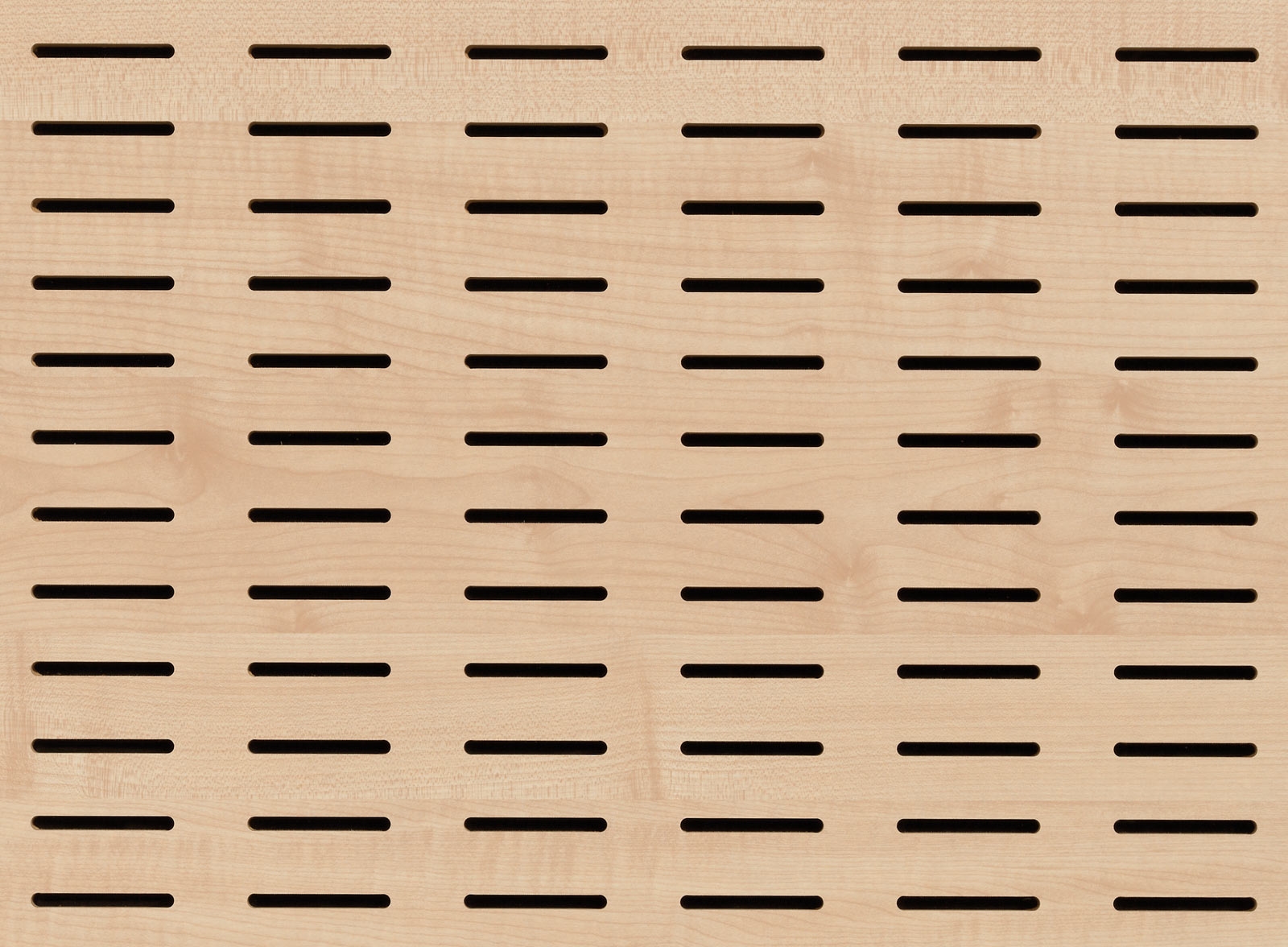

Its main feature is the groove spacing of 32 mm horizontally and 37 mm vertically. With the different variants of groove patterns and widths, different levels of absorption and aesthetic results can be achieved. These panels are ideal for creating acoustic walls, wall cladding or installation as a sound absorbing wooden false ceiling.
Application: walls y ceilings
Technical specifications
Format: panel
Measures: 600x600x12 mm
Composition: MDF medium-density fibre board
Weight: 8,53 kg/m2
Density: 750 kg/m3
Acoustic tests: 0.50 (without plenum) – 0.55 (with plenum)
Application: Walls, Ceilings
– MDF Melamine 12 mm
– MDF veneered wood 13 mm
– Phenolic HPL compact 12 mm
Special support materials: Enquire for more details.
Acoustic absorbent layer: Black acoustic fleece adhered to the back.
Dimensions:
Ceiling: 1200/600x600x12 mm
Coating: 2430/1200/600x600x12 mm
Tolerance:
Width +- 1.5 mm / Length +- 1.5 mm. As per CE mark
Standard melamines:
Standard wooden panels:
Melamine or HPL laminates:Range available in over 100 colours.
Lacquers:Can be customised to any colour from the Pantone, RAL or NCS charts.
